Among which the mass flowmeter for hydrogen is the core part for gas dispenser of compressed hydrogen and the type selection of flowmeter can directly influence the performance for gas dispenser of compressed hydrogen.

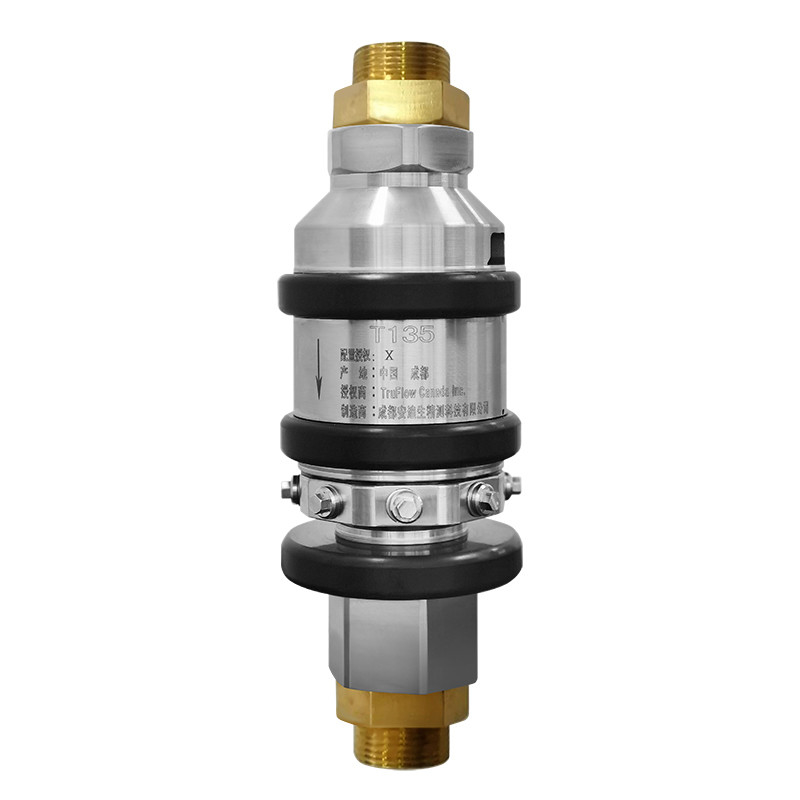

The hydrogen refueling breakaway coupling can seal quickly, which is safe and reliable.
● It can be still used after being reassembled once being broken away, making the maintenance cost low.
|
Mode |
T135-B |
T136 |
T137 |
T136-N |
T137-N |
|
Working medium |
H2 |
||||
|
Ambient Temp. |
-40℃～+60℃ |
||||
|
Max working pressure |
25MPa |
43.8MPa |
|||
|
Nominal diameter |
DN20 |
DN8 |
DN12 |
DN8 |
DN12 |
|
Port size |
NPS 1" -11.5 LH |
Inlet end: 9/16 pipe CT threaded connection; Air return end: 3/8 pipe CT threaded connection |
|||
|
Main materials |
316L Stainless steel |
||||
|
Breaking force |
600N～900N |
400N～600N |
|||
Hydrogen Dispenser Application
Working medium: H2, N2
Efficient use of energy to improve the human environment
|
|
