The products are mainly composed of unloading pressurized gasifier, main air temperature gasifier, electric heating water bath heater, low temperature valve, pressure sensor, temperature sensor, gas probe, pressure regulating valve, filter, turbine flow meter, emergency stop button, low temperature / normal temperature pipeline and other systems.
Comprehensive security protection design, meet GB/CE standards.
● Perfect quality management system, reliable product quality, long service life.
● Unattended integrated control system with SMS reminder function
● Optional Integrated Video Surveillance System (CCTV).
● Standard 20 to 45 feet shape structure, overall transportation.
● On-site installation is fast and fast and can be relocated at any time.
● With LNG unloading supercharge, gasification, pressure regulation, metering and other functions.
● Configure special instrument panel installation pressure, liquid level, temperature and other instruments.
● Standardized assembly line production mode, the annual output > 300 sets.
| Design temperature | -196~50°C | Ambient temperature | -30~50°C |
| Design pressure | 1.6 MPa | Device form factor | 6000~12000mm |
| Outlet pressure | 0.05~0.4 | Equipment weight | 2000~5000kg |
| Recommended amount of gasification | 500/600/700/800/1000/1500Nm³/h | ||
| Odorizing device | The volume of the odorization tank is 30L, and the single pump is 20mg/min | ||
| Metering devices | Turbine flowmeter accuracy 1.5 class | ||
| Control system | PLC+ remote monitoring | ||

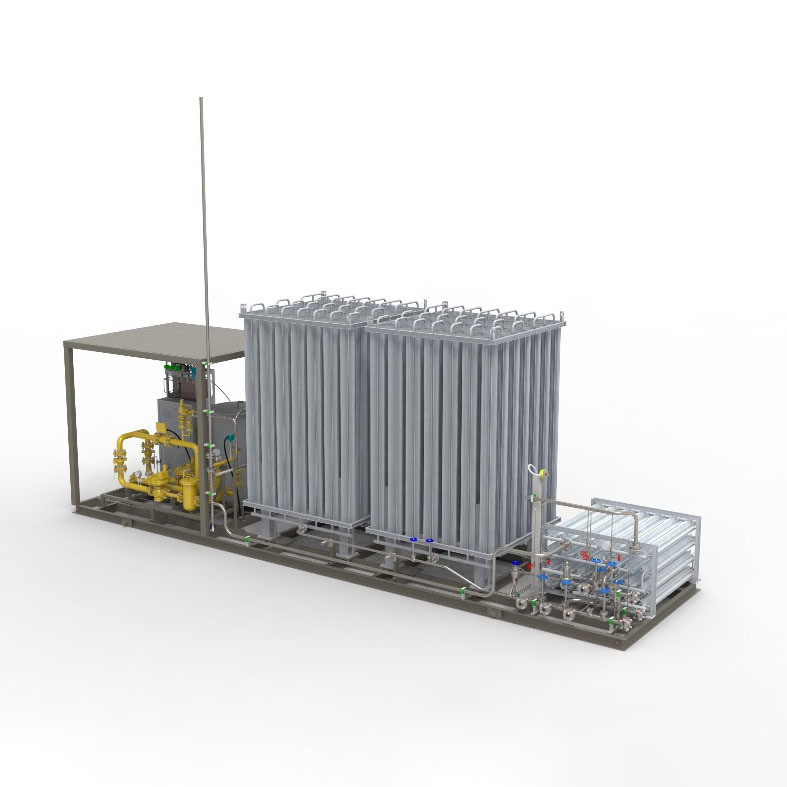

This product is used in unattended LNG gasification station, gasification capacity 500~1500Nm3/h.
