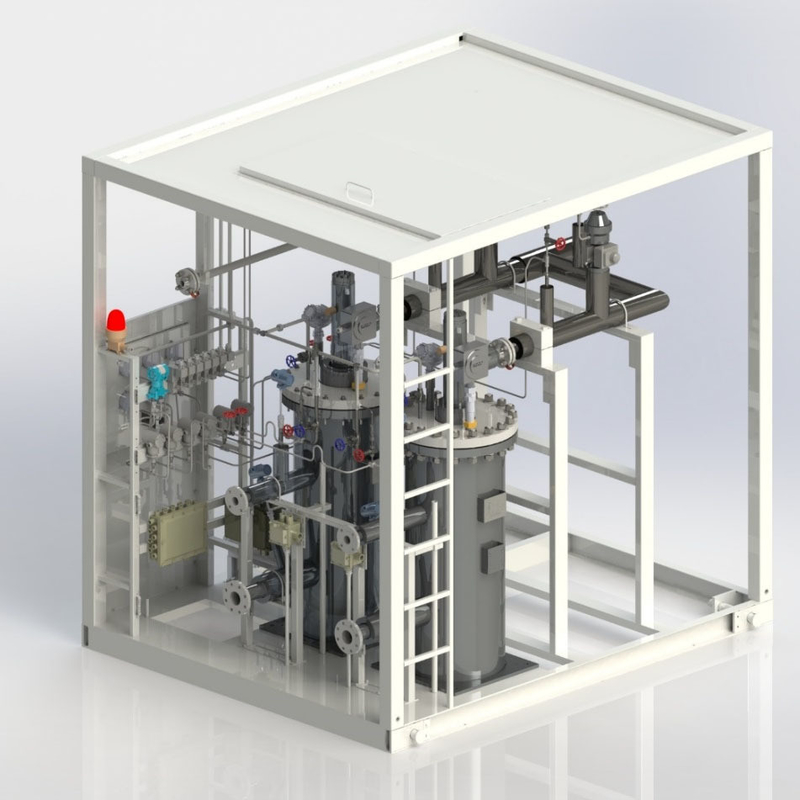

It integrates the functions of filling and pre-cooling, and can realize the bunkering function with the PLC control cabinet, power drag cabinet and liquid filling control cabinet, the maximum filling volume can reach 54 m³/h. At the same time, according to customer needs, the LNG trailer unloading, storage tank pressurization and other functions can be added.
Highly integrated design, small footprint, less on-site installation workload, and fast commissioning.
● Skid-mounted design, easy to transport and transfer, with good mobility.
● Can be adapted to different types of tanks, with strong versatility.
● Large filling flow and fast filling speed.
● All electrical instruments and explosion-proof boxes in the skid are grounded in accordance with the requirements of the national standard, and the electrical control cabinet is independently installed in a safe area, reducing the use of explosion-proof electrical components and making the system safer.
● Integrated with PLC automatic control system, HMI interface and convenient operation.
● Can be customized according to user needs.
| Product number | HPQF series | Design Tempreture | -196～55 ℃ |
| Product Size (L×W×H) | 3000×2438×2900 (mm) | Total Power | ≤70KW |
| Product Weight | 3500kg | Electric System | AC380V, AC220V, DC24V |
| Fill Amount | ≤54m³/h | Noise | ≤55dB |
| Applicable Media | LNG/liquid nitrogen | Trouble Free Working Time | ³5000h |
| Design Pressure | 1.6MPa | Measurement Error | ≤1.0% |
| Work Pressure | ≤1.2MPa | -- | -- |
This product is used as the filling module of the shore-based LNG Bunkering station and is only used for the shore-based filling system.
