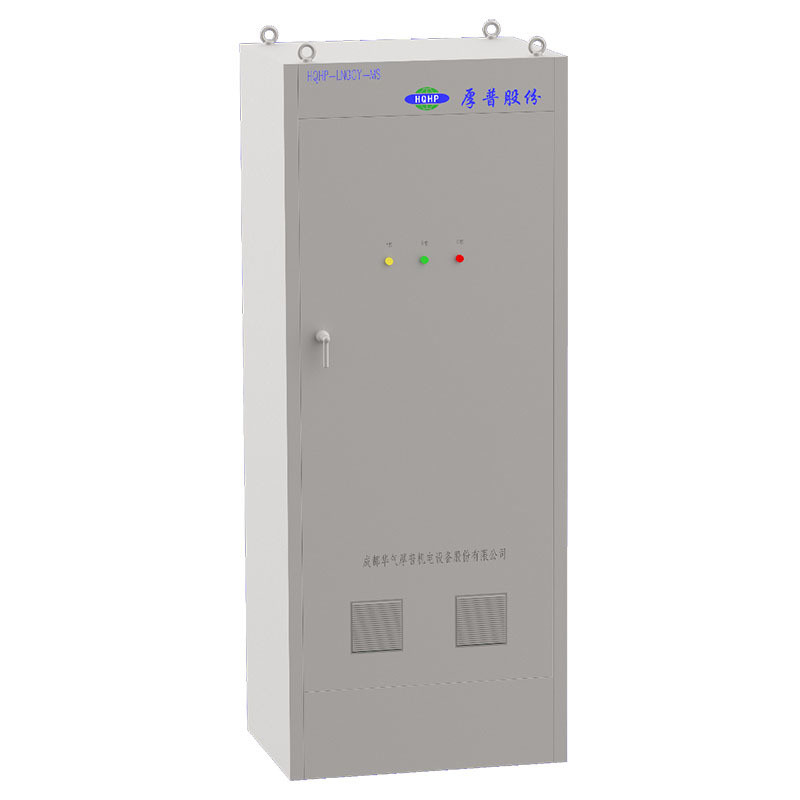

The power cabinet is suitable for power distribution, lighting distribution and motor control of three-phase four-wire and three-phase five-wire power systems with AC frequency of 50Hz, rated voltage of 380V and below, and provides protection against overload, short circuit and leakage of the wires.
Hold CCS product certificate (offshore product PCS-M01B holds)
● High reliability and easy maintenance.
● Modular structure design, easy to expand.
● The system has a high degree of automation and can be operated with one button.
● Information sharing and equipment linkage with PLC control cabinet can realize intelligent control such as pump pre-cooling, start and stop, and interlock protection.
| Product number | PCS series |
| Product Size (L×W×H) | 600×800×2000 (mm) |
| Supply voltage | Three-phase 380V, 50Hz |
| power | 70kW _ _ |
| Protection class | IP22, IP20 |
| Operating temperature | 0～50 ℃ |
| Note: It is suitable for indoor non-explosion-proof areas without conductive dust or gas or steam that destroys insulating media, without severe vibration and shock, and with good ventilation. | |
This product is the supporting equipment of LNG filling station. Both water-based and shore-based bunkering stations are available.
Efficient use of energy to improve the human environment
|
|
