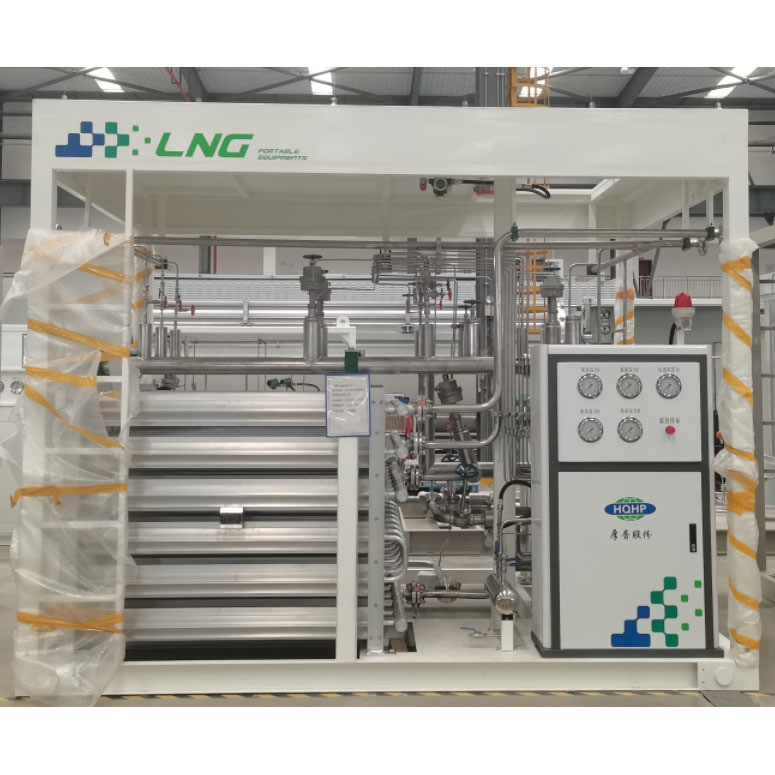

The product is mainly composed of submersible pump, cryogenic vacuum pump, vaporizer, cryogenic valve, pipeline system, pressure sensor, temperature sensor, gas probe, and emergency stop button.
Comprehensive security protection design, meet GB/CE standards.
● Perfect quality management system, reliable product quality, long service life.
● Integrated skid-mounted structure, high degree of integration, on-site installation is fast and simple.
● The use of double-layer stainless steel high vacuum pipeline, short pre-cooling time, fast filling speed.
● Standard 85L high vacuum pump pool, compatible with international mainstream brand submersible pump.
● Special frequency converter, automatic adjustment of filling pressure, saving energy and reducing carbon emissions.
● Equipped with independent pressurized carburetor and EAG vaporizer, high gasification efficiency.
● Configure special instrument panel installation pressure, liquid level, temperature, etc.
● With a separate in-line saturation skid, it can meet the needs of different models.
● Standardized assembly line production mode, the annual output > 300 sets.
|
Serial number |
Project |
Parameters/specifications |
|
1 |
Total power |
≤ 22 (44) kilowatts |
|
2 |
Design displacement |
≥ 20 (40) m3/h |
|
3 |
Power supply |
3Phase/400V/50HZ |
|
4 |
Equipment weight |
≤ 2500 (3000) kg |
|
5 |
Working pressure/design pressure |
1.6/1.92 MPa |
|
6 |
Operating temperature/design temperature |
-162/-196°C |
|
7 |
Explosion-proof markings |
Ex d e ib mb II.B T4 Gb |
|
8 |
Device size |
3600×2438 ×2600 mm |
The product is used for stationary LNG filling station, LNG daily filling capacity of 50/100m3/d, can achieve unattended.
Efficient use of energy to improve the human environment
|
|
